Sebring spec Sprite - 8401 UE

8401 UE at the Spridget 50 celebrations, Gaydon

With a Len Pritchard built Sebring rear aluminium shroud, originally produced by Len as a spare for Jonathon Whitehouse-Bird's EAO restoration, 8401 UE belongs to Richard Wiffen. This Sprite is a recreation of what a well off and time-rich owner could to do to their car in 1960 for competition use, and illustrates that Sebring Sprites can in many shapes and bodies. It complies with FIA Appendix K specifications for a Sebring Sprite and also the earlier Sprite Supercharged specifications with the wire wheel option. It was built from parts acquired by Richard over a period of 13 years with the help and input of a large number of enthusiasts in the Sprite community, paid and unpaid over the years.

Richard says:

"I have been really touched by the nice things people have said about my car. It was a very long time coming together and some parts were acquired so long ago I had even forgotten I owned them! Len Pritchard’s bodywork skills really were of the very highest order and so much of the measurement of curve and angle he just held in his head. I agree that the debate about “What’s a Sebring Sprite?” is a lively issue (one I feel quite relaxed about) as is “What is a W&P Sprite?” Anyway the short-ish answer to your question is that I would be delighted to join the Register and very proud for my car to be displayed."

The car's specification is as follows:

The bodywork

Alloy rear tub by Len Pritchard of W&P; Abingdon pressed alloy doors; aluminium front inner and outer panels; bonnet part alloy with air scoop from 7080 AC (1960 Alpine Rally car, Tomy Wisdom & Jack Hay); strengthened inner shell.

Engine

A series 995cc block; tutrified crank; lightened/balanced innards; Supercharger from 7080 AC, with Shorrock C75B blower kit; race prepped; Abarth exhaust system.

Gearbox and Transmission

Smooth case sccr gearbox; Girling hydraulics; 3.727:1 diff (ex Riley 1.5).

Brakes, Hubs and Wheels

Standard hubs, front brakes Girling Type 10 callipers with hub adapter plates; rear Riley 1.5 8" drums; Girling hydraulics; Borrani alloy wire wheels.

Suspension and Tyres

Front - 400 lb springs with standard Armstrong lever shock absorbers; Rear - 10 leaf springs with spacer and Armstrong adjustable dampers; Healey 100 anti-roll bar; Dunlop 4.50 x 13 racing tyres.

Ancilliaries

Electric fan; replica 120mph works speedo; Speedwell Weston rev counter; replica Healey Speed Equipment seats and steering wheel.

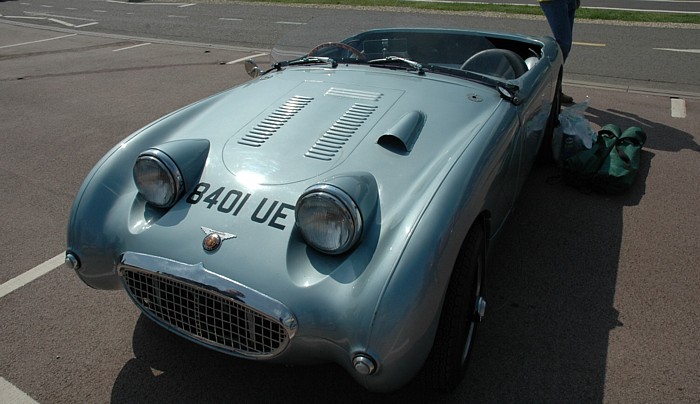

top: modified bonnet with alloy scoop; middle: side view of those lovely Borranis; bottom: engine view

Many thanks to Gary Lazarus for permission to adapt the text from his article in MASCOT Vol 294 September 2008 (Midget and Sprite Club Magazine) and to reproduce his photos.

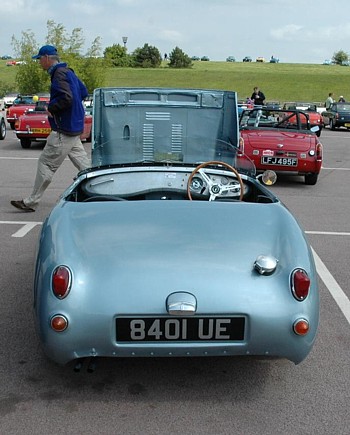

below: detail of the Len Pritchard hand-rolled Sebring alloy rear shroud

photos courtesy of Gary Lazarus / Tim Saunders © 2008 all rights reserved
